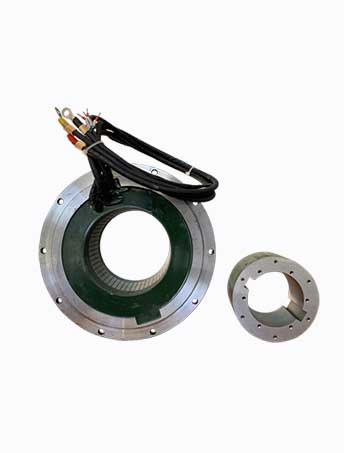

Permanent magnet torque motor --ED series tail-mounted motorized spindle

2024-02-02 08:20:08
second
Permanent magnet torque motor --ED series tail-mounted motorized spindle
Detailed introduction:

The permanent magnet synchronous electric spindle motor is a motor made of permanent magnet synchronous motor technology used to drive the spindle of the machine tool. Compared with traditional spindle motor, permanent magnet synchronous spindle motor has higher efficiency, lower noise higher stability, is widely used in machine tool manufacturing industry.



ED series built-in motorized spindle is a special type of permanent magnet synchronous motorized spindle motor, which integrates the driver controller, can be directly connected with the control system of the machine tool to achieve accurate spindle motion control. This design makes the ED series built-in motorized spindles more compact easy to install, while also improving the stability reliability of the system.



The ED series built-in motorized spindles have many advantages. First, it uses permanent magnet synchronous motor technology with high efficiency high torque density. This means that at the same power, the ED series built-in motorized spindles can provide greater output torque, while reducing energy consumption improving system efficiency.



Secondly, the controller driver of the ED series built-in motorized spindle are built into the motor can be directly communicated controlled with the control system of the machine tool. This design simplifies the wiring installation of the system reduces the probability of system failure. At the same time, the built-in controller driver have advanced control algorithms fault detection functions, which can achieve high-precision spindle control fault diagnosis.



Third, the ED series built-in motorized spindle adopts permanent magnet synchronous motor technology, which has fast response characteristics high-precision position control ability. It can start stop in a short time, quickly realize the acceleration deceleration of the spindle. At the same time, due to the structural characteristics of permanent magnet synchronous motor, ED series built-in motorized spindle has lower inertia smaller rotor inertia, which can achieve higher spindle speed faster response speed.



Fourth, the ED series built-in motorized spindle has lower noise vibration levels. Permanent magnet synchronous motorized spindle motor adopts brushless structure, no carbon brush commutator, thus reducing noise vibration caused by friction commutation. At the same time, the internal structure of ED series internal motorized spindle has been optimized, which effectively reduces the mechanical vibration resonance phenomenon, making the spindle run more stable stable.



To sum up, ED series built-in motorized spindle is a kind of high-performance spindle motor using permanent magnet synchronous motor technology. It has the characteristics of high efficiency, low noise, high stability high precision, is widely used in machine tool manufacturing industry. With the continuous progress of motor technology the increase of application demand, ED series internal motorized spindles will play a more important role in the future development.
