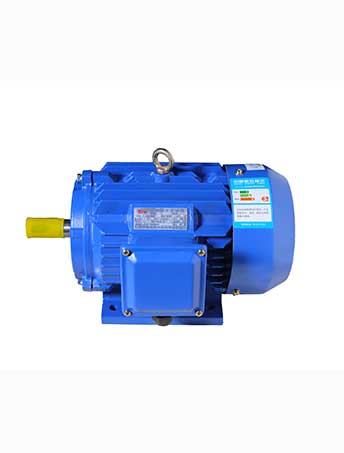

YE2 series Three Phase Asynchronous Motors

YE2 series Three Phase Asynchronous Motors

  • Category:Ye2 series three-phase asynchronous motor
  • Views:
  • Release Date:2020-06-02
  • Product description
  • Parameter

YE2 series three- -phase asynchronous motor is a kind of single speed motor developed by our company, which is fully enclosed, self cooling  continuous

working. Motor adopts advanced design concepts; mature, precision processingtechnology; high quality raw materials, with compact structure, high efficiency, low

noise, small vibration, stable  reliable operation, long life  othercharacteristics. As the driving equipment is widely used in various types of fans,

pumps, machine tools  other equipment.

YE2 series three- -phase asynchronous motor's efficiency confirms to the three level of energy- -saving estimate value specified in GB18613- -2012,  can meet the IE2 efficiency grades in IEC60034- -30 standard.

Insulation System:

According to the design of class F (155 DEG C), in the rated output  direct power supply motor temperature rise according to 80K appraisal, 315 seat No.2, 4.

pole  355 frame size motor temperature rise is allowed to reach 105K;

Cooling Method:standard cooling mode for IC410, IC411 self fan cooling, can be the motor N end (non shaft extension) with the fan, in order to meet the cooling air flow can rely on shaft extension end driven by the wind turbine cooling;

Motor 31 5- -355, 200  above 2 pole motor with standard oil nozzles,  more than 132 motor optional;

Material: cast iron castings;

Standard installation structure of : IM B3, IM B5, IM B35 etc.;

The motor can be used PTC  PT100 thermistor for winding protection, but also the installation of winding temperature measuring device,  frame 160  up motor optional bearing temperature measuring device;

Special design: we can design special motor voltage  frequency according to customer requirements; can be adjusted according to customer requirements of motor appearance color.


Installation  configuration dimensions
