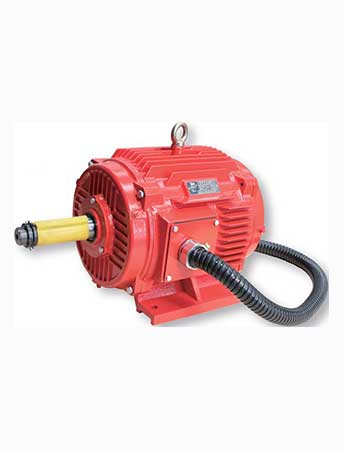

YE2(DSF) series three phase asynchronous motor for subway tunnel fan

2024-02-02 08:26:58
second
YE2(DSF) series three phase asynchronous motor for subway tunnel fan
Detailed introduction:

The three-phase asynchronous motor for subway tunnel fan is developed by Suzhou Deneng Motor Co., LTD., which is specially used to support the three-phase asynchronous motor for subway tunnel fan. The motor design concept is advanced, with compact structure, high energy efficiency, low noise, low vibration, stable reliable operation, long service life so on. The motor can be used continuously as S1 working motor in normal use, can also run normally for 2 hours in high temperature environments, such as 300 degrees Celsius ambient temperature. As a driving equipment supporting the subway tunnel fan, it provides reliable ventilation smoke exhaust facilities for all kinds of subways, hotels large buildings.


The efficiency of YE2 (DSF) three-phase asynchronous motor for subway tunnel fan under rated load reaches the level 3 energy efficiency requirements of {GB18613-2012 ", can meet the IE2 efficiency level of IEC60034-30 standard; Electrical parameters are the same as those of YE2 series motors.


Main Performance Main Performance

• Rated Power Range:0.09-315KW

• Rated Frequency: 50Hz

• Rated Voltage: 380V

• Motor Poles: 2, 4, 6, 8, 10, 12, 16

• International Protection Standard: IP55



Insulation system:

According to the design of H (180*0) C pole (220P), the temperature rise of the motor is assessed by 80K when the rated output direct power supply, the temperature rise of the 2 4 poles of 315 frame size the motor of 355 frame size is allowed to reach 105K; It can operate normally for 2 hours at 250P ambient temperature.

Motor cooling mode: the standard cooling mode is IC411. IC410 self-fan cooling, relying on the wind brought by the fan driven by the shaft extension end for cooling;

Motor 315-355, 200 above 2-pole motor standard with oil injection nozzle, 132 above motor optional;

Casting material: cast iron;

Standard installation structure types: IMB3, IMB5, IMB35, etc.


Motor can choose PTC PT100 thermistor for winding protection, can also be installed winding temperature measuring device, more than 160 motor can choose bearing temperature measuring device;


Special design: Suzhou Deneng Motor Co., Ltd. can design special voltage, frequency motor according to customer requirements; The appearance color of the motor can be adjusted according to customer requirements.
