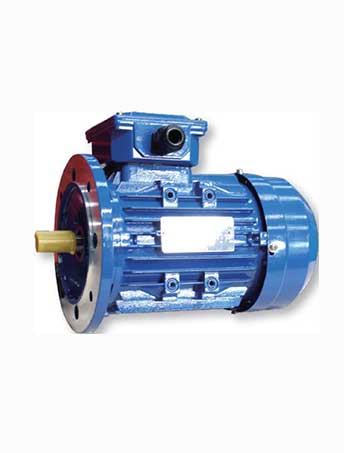

MS(IE2) series Three Phase Asynchronous Motors

MS(IE2) series Three Phase Asynchronous Motors

  • Category:MS series three-phase asynchronous motor
  • Views:
  • Release Date:2020-06-02
  • Product description
  • Parameter

MS(IE2) 80-160 series (aluminum body) three-phase asynchronous motor is newly designed product which concentrates domestic  overseas experience. This

series motor adopts totally enclosed fan-cooled structure、IP55 degree of protection、F class insulation、S1 continuous duty, the joint-box lies on the top of motor,  the outer cage is made of sufficient mechanical strength iron casting with dismountable feet, the unique external structure has the advantage of good heat-dissipating effect. This series motor is characterized with beautiful cage、small volume、light weight.lttle noise、 convenient installation. The power  installation size are identical withYE2 series(iron-casting frame),  the performance conform to IEC standard.

MS(E2) 80-160 series (aluminum body)three-phase asynchronous motor'sefficiency confirms to the three level of energy-saving estimate value specified in

GB18613-2012,  can meet the IE2 efficiency grades in IEC60034-30 standard.

This series motor are widely used in light industry、textile、 plastics、 chemical、metallurgy、machine tool、air-blower、water pump、compressor. food process  agricultural equipment  so on.

The basic installation structure are : B3、B5、B35、 B14、B34.


Insulation System:

According to the design of class F (155 DEG C), in the rated output  direct power supply motor temperature rise according to 80K appraisal;

Cooling Method:Standard cooling mode for IC410, IC411 self fan cooling, can be the motor N end (non shaft extension) with the fan, in order to meet the cooling air flow can rely on shaft extension end driven by the wind turbine cooling.

Installation  configuration dimensions
